Introduction:
The HiBy R1 is the latest and smallest member of the R Series digital audio player (DAP) range of the company. The device features a Cirrus Logic CS43131 DAC that supports high-resolution audio formats up to 32-bit/384kHz PCM and DSD256. Its ultra-small and stylish design, available in multiple colors, includes an 800×480 IPS touchscreen for clear visuals and an intuitive UI. Equipped with the X1600E master control for enhanced performance compared to its predecessors and Bluetooth 5.1 with support for Hi-Res codecs like LDAC and aptX. Additionally, the device includes a Wi-Fi antenna for wireless file transfers and streaming (Tidal & Qobuz) and comes with a battery that offers up to 15 hours of continuous playback and expandable storage up to 2TB via Micro SD.
Price & Availability:
The standard version retails for $85.00, offering all the basic accessories needed to get started with the HiBy R1. For those seeking additional value, the set version is priced at $99.00 and includes extra accessories such as Yves Earphones, a 32GB Micro SD card, and a Microfiber pouch.
More information can be found at the link below:
Package & Accessories:
The HiBy R1 arrives in a relatively small, rectangular-shaped black box, which is encased in a cardboard sleeve. The sleeve features an illustration of the device along with some product-related branding on the top, providing a clear first impression of the device within.
The box of the HiBy R1 contains the following items;
Standard Version:
- HiBy R1 *1
- Protective film *3 (2 preinstalled on the screen, 1 spare)
- USB 2.0 cable *1
- Card extraction pin *1
- User manual *1
- Warranty card *1
- Certification *1
- Strap *1
- Outer packaging *1
- Mesh pouch *1
Set Version:
- HiBy R1 *1
- Protective film *3 (2 preinstalled on the screen, 1 spare)
- USB 2.0 cable *1
- Card extraction pin *1
- User manual *1
- Warranty card *1
- Certification *1
- Strap *1
- Outer packaging *1
- Yves Earphones *1
- S/M/L size ear-tips *1
- 32GB Micro SD card *1
- Microfiber pouch *1

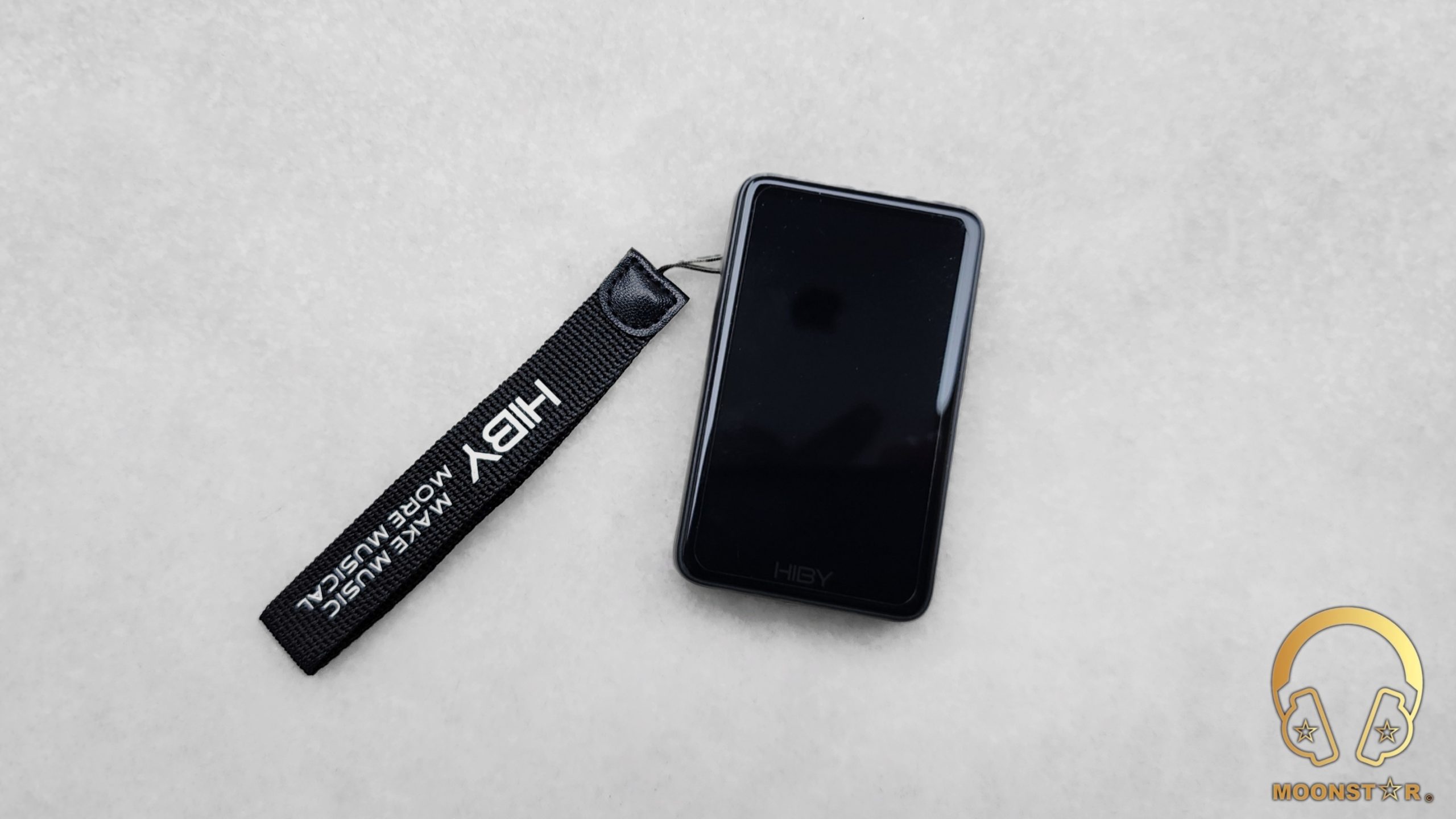

I received the Set Version of the R1, which also includes the Yves Earphones, several silicone ear tips, a 32GB Micro SD card, and a stylish pouch that are not included in the Standard edition.
Design & Build Quality:
The HiBy R1 shows an ultra-compact and lightweight design, weighing just 70 grams thanks to its polycarbonate chassis and measuring 83.5 x 51.1 x 12.35mm. Its aesthetic is both modern and stylish, featuring a translucent chassis available in a variety of vibrant colors. This colorful design gives the R1 a unique and eye-catching look that stands out in the world of digital audio players.

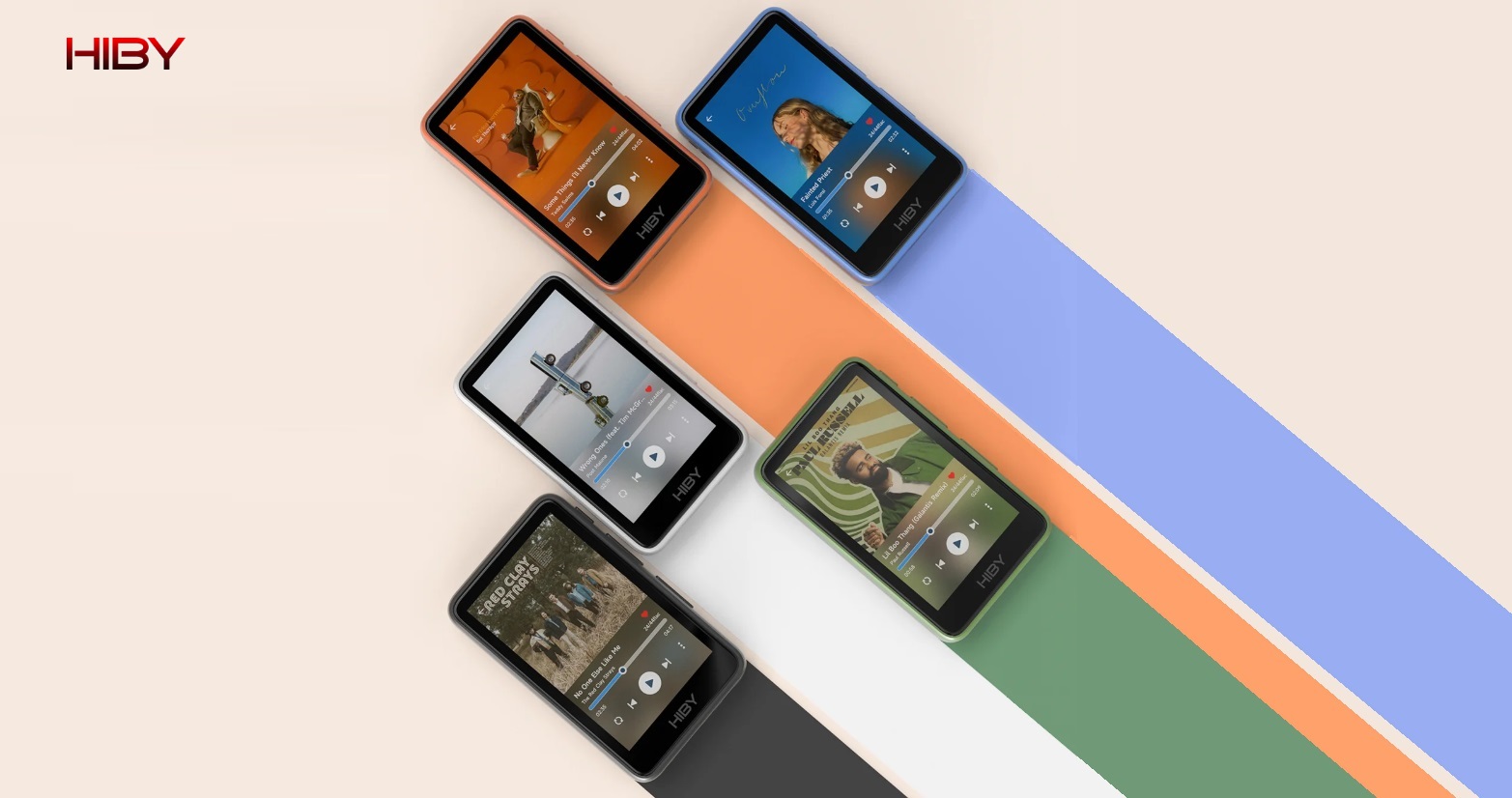

The R1 is available in Orange, Black, White, Green and Blue color options.

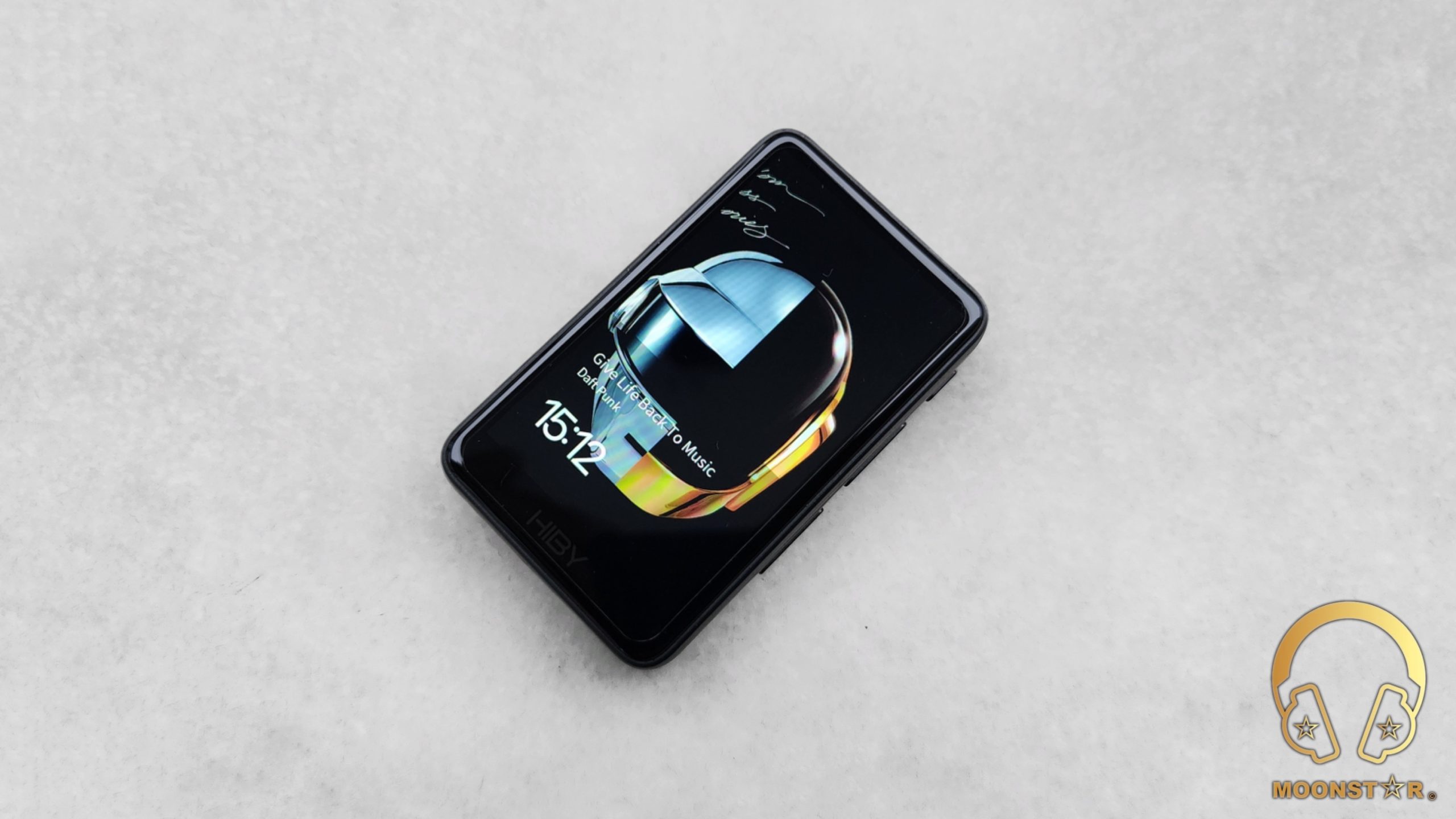

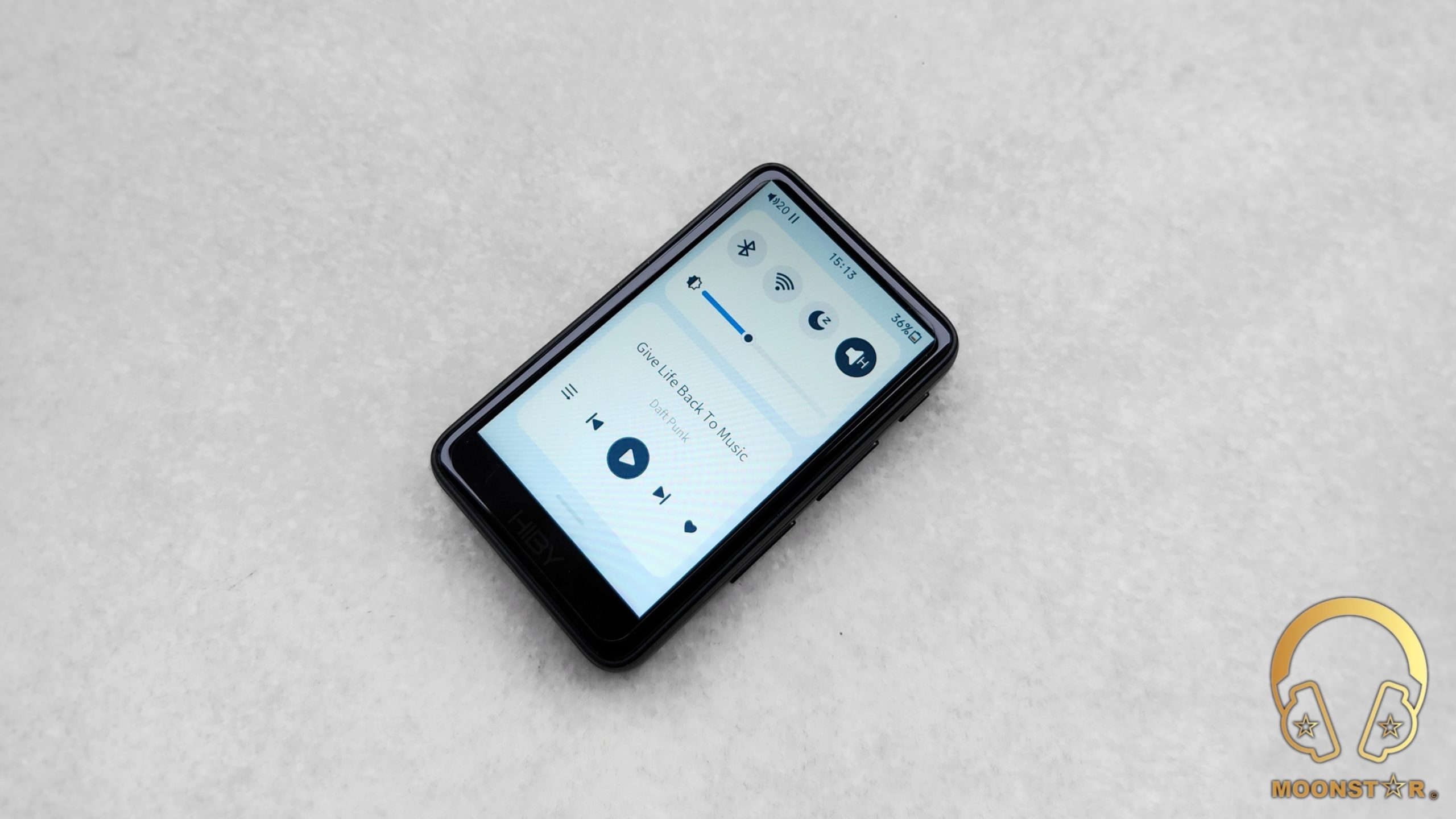

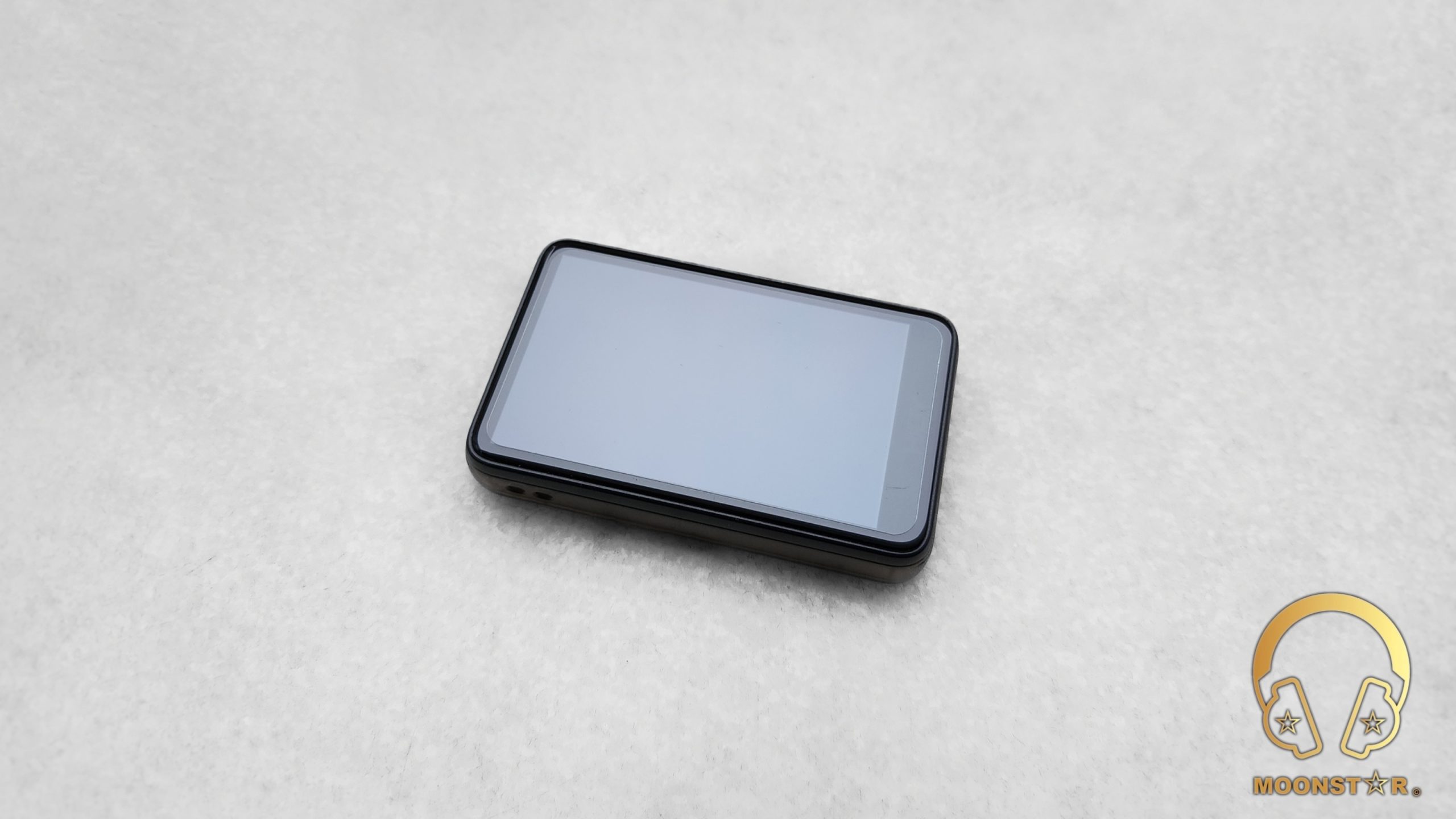

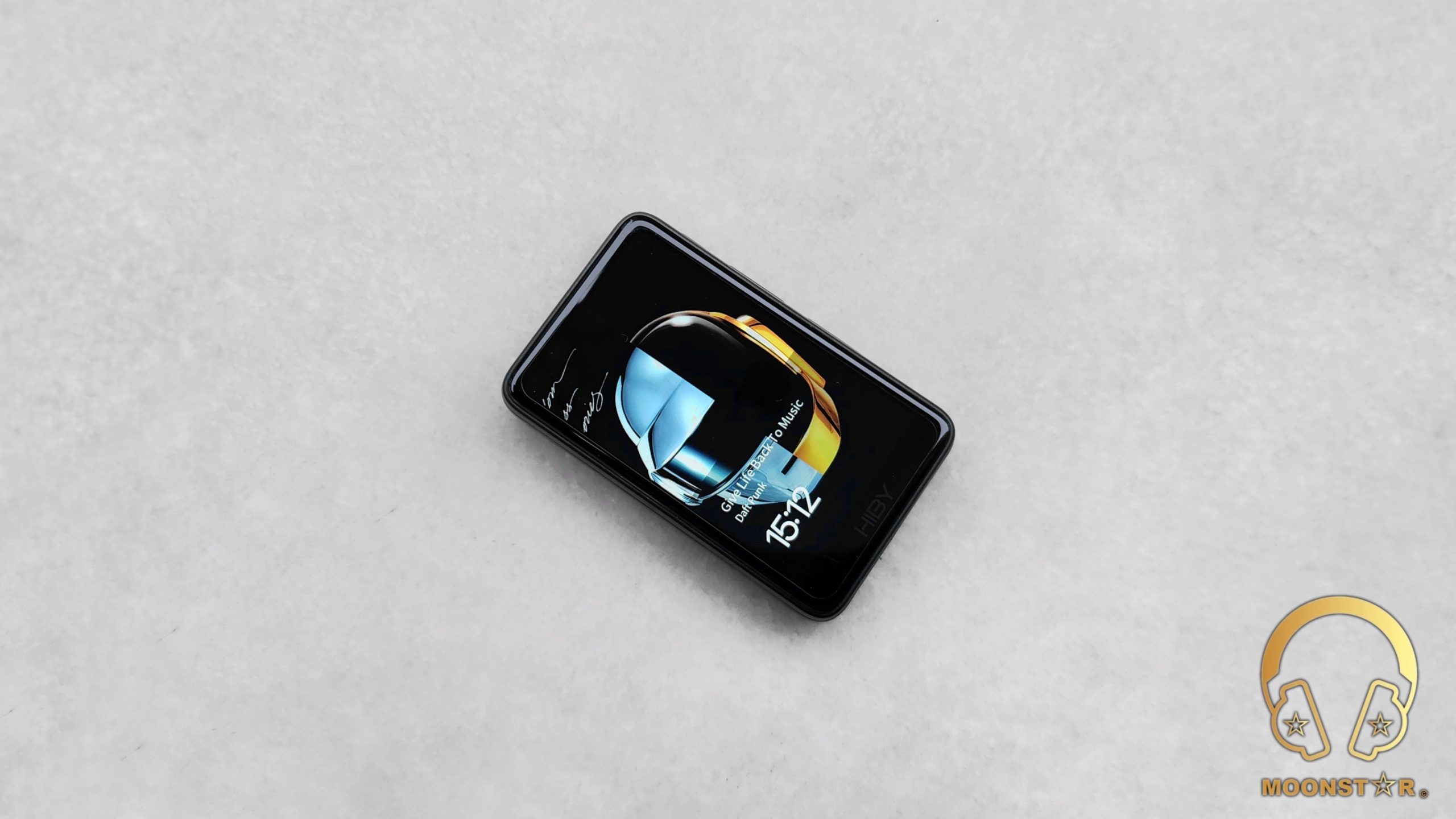

The front of the HiBy R1 is dominated by a 3” 800×480 touchscreen. This display provides clear and detailed visuals, making it easy to navigate through your music library and enjoy album covers in high resolution.
The intuitive user interface further enhances the user experience, allowing for effective interaction with the device.

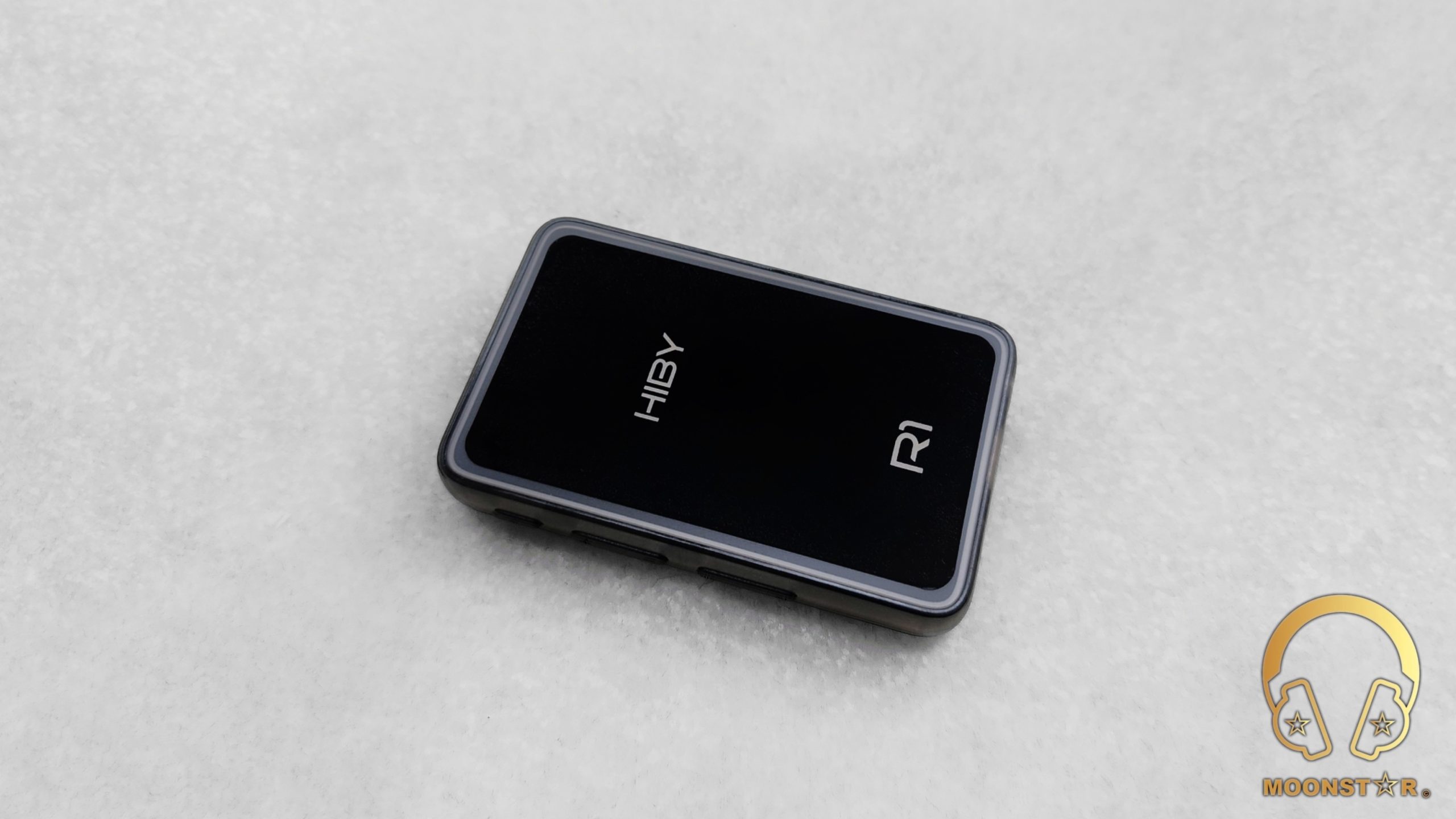

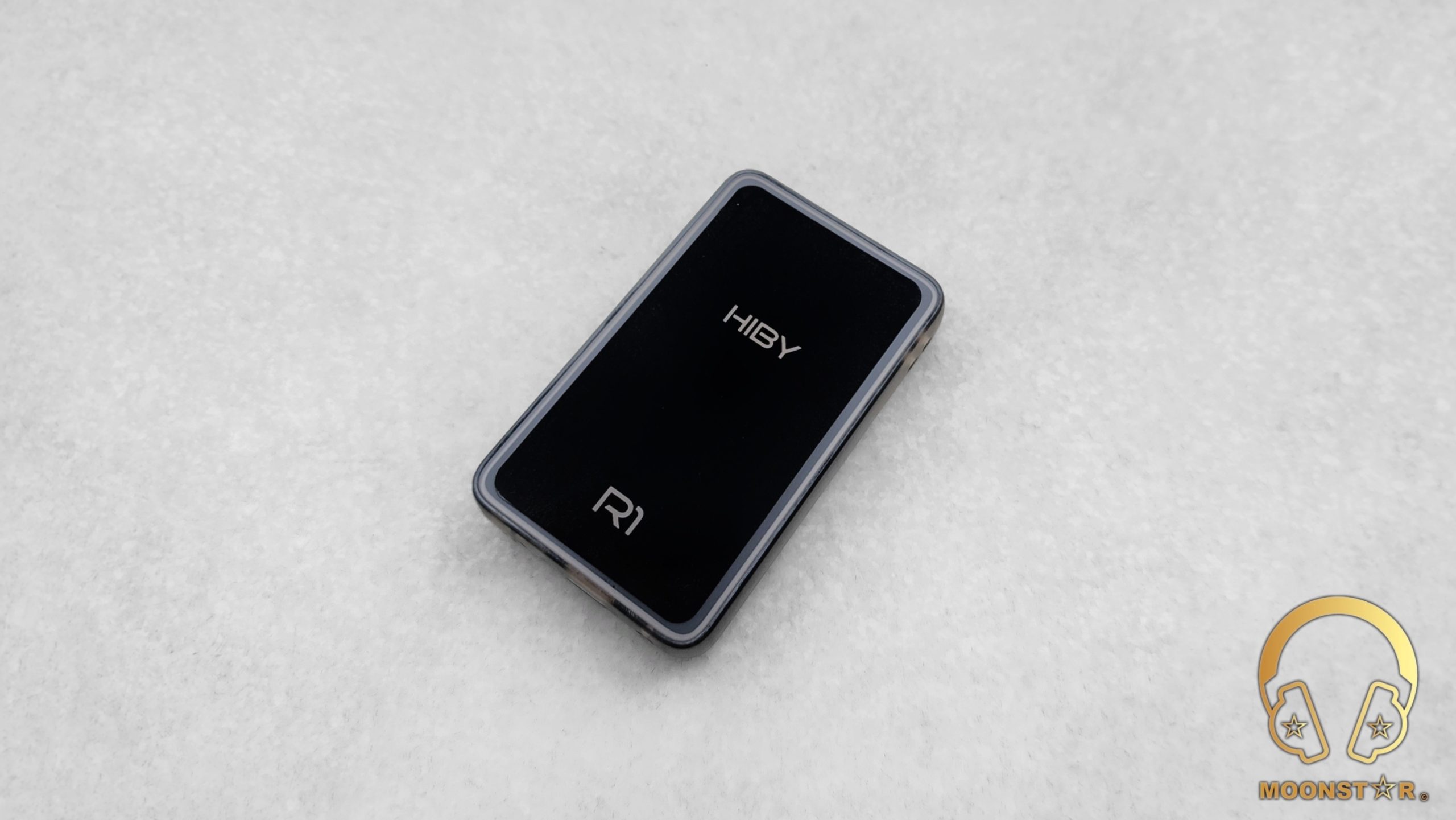

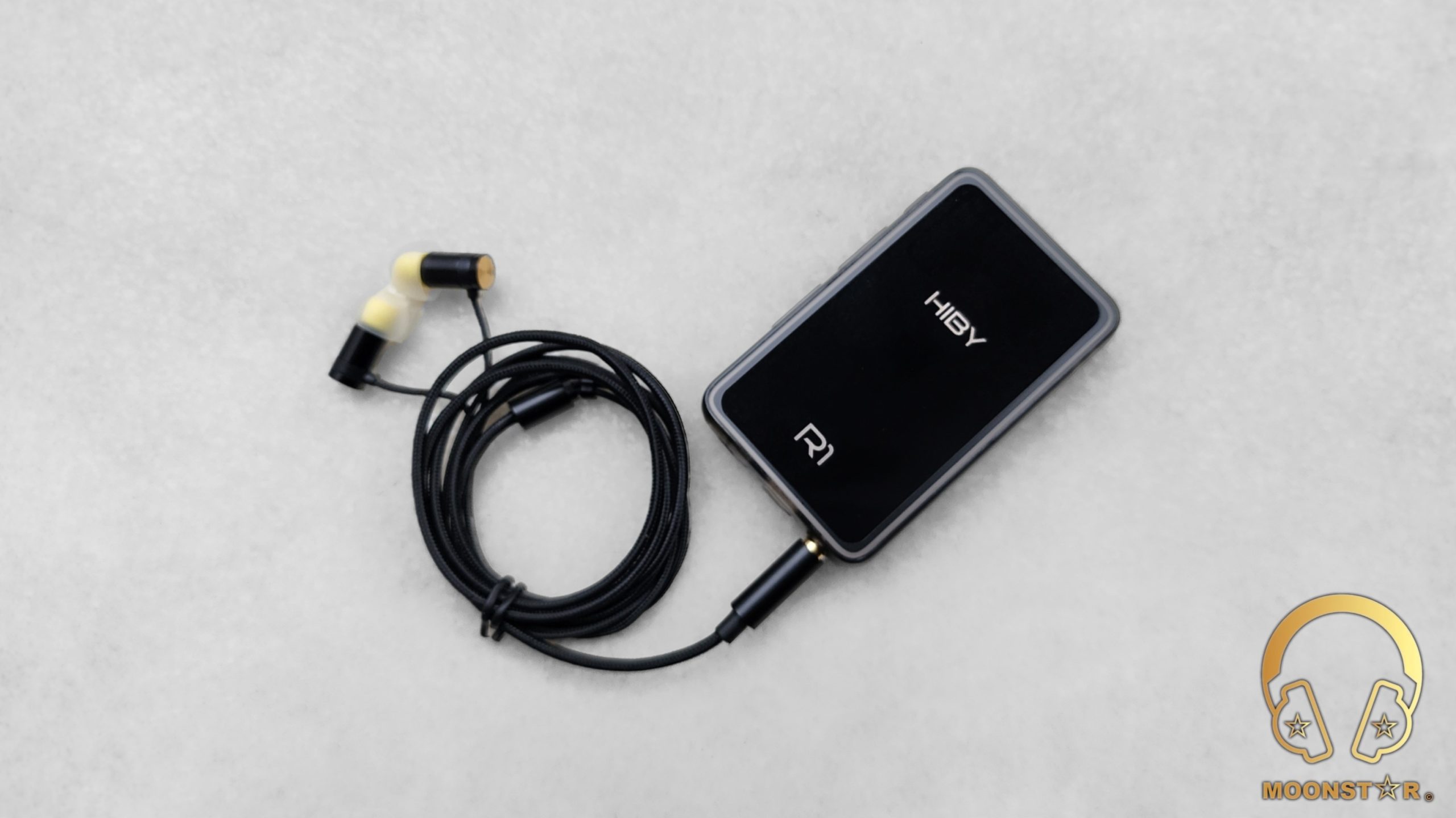

The rear surface of the HiBy R1 maintains a minimalist design, elegantly displaying the brand name “HiBy” and the model “R1.” This clean and sophisticated look complements the overall aesthetic of the device, adding to its appeal.

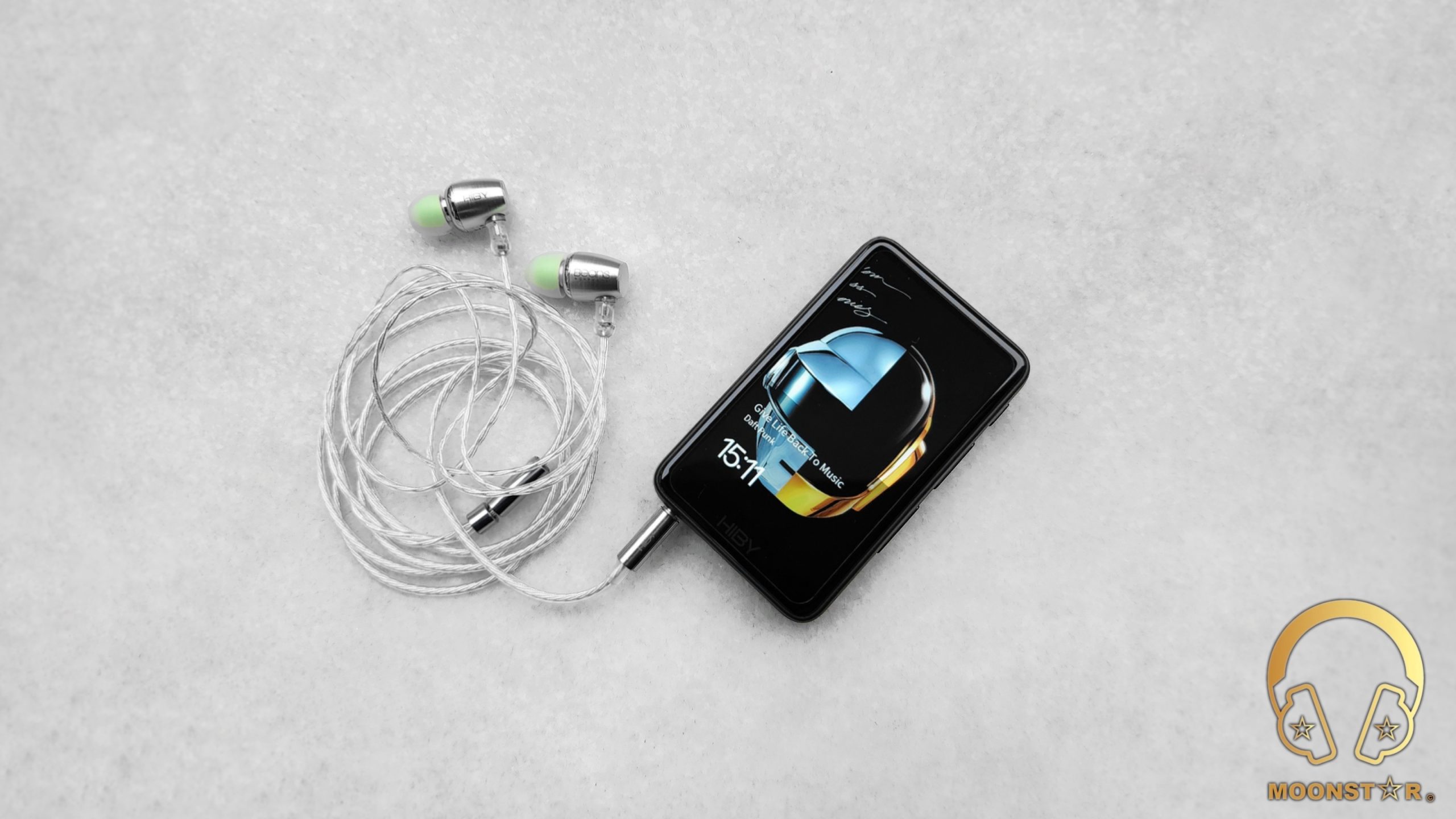

At the bottom of the HiBy R1, you will find key interfaces, including a 3.5mm headphone output and a Micro SD slot for expandable storage. These interfaces are thoughtfully integrated into the design, ensuring that they do not detract from the device’s sleek appearance.

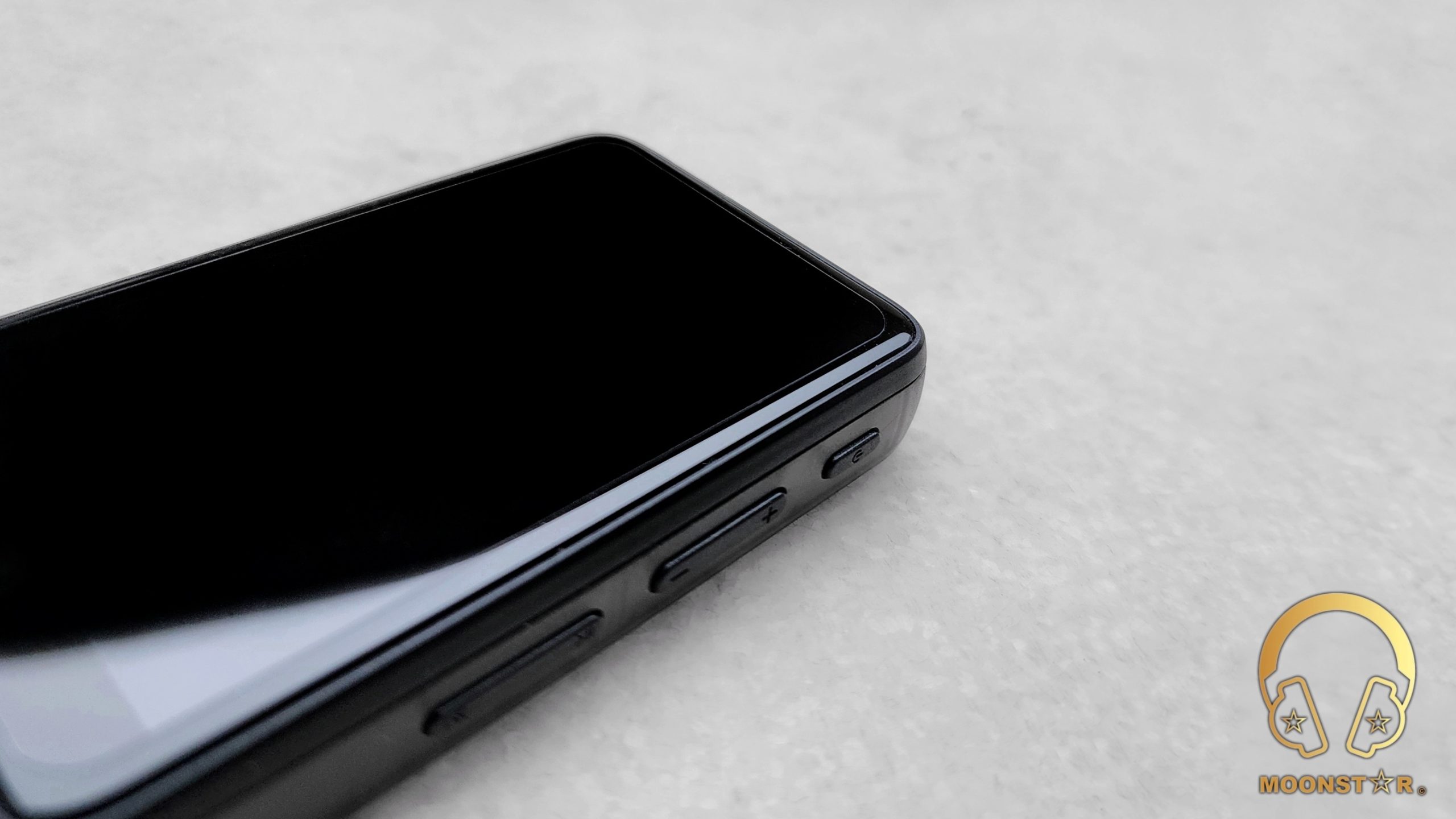

The side of the HiBy R1 features a series of control buttons designed for convenience. These include the power button, volume up and down buttons, and playback controls for play/pause, next track, and previous track.
The placement of these buttons ensures easy access and control, making it simple to manage your music playback.
Overall, the design of the HiBy R1 blends form and function, offering a visually appealing and user-friendly experience. The various color options, clear touchscreen display, and convenient control buttons make it a practical choice for music listening on the go.
Hardware Specifications:
- Model : HiBy R1
- Operating System : HiByOS (Linux-based)
- Logic SoC : X1600E
- DAC : CS43131
- Audio Resolution : DSD256 & PCM384kHz/32bit
- Analog Audio Output : 3.5mm PO
- Audio Formats Supported : mp3, wav, ape, flac, dsf, dff, iso, cue, wma, ogg, aac, opus, aiff
Wireless Functionality:
- WiFi Support: 2.4G
- Bluetooth: Bluetooth 5.1
- Hi-res Bluetooth Codecs Supported: LDAC, aptX (transmit only), AAC, SBC
- Wireless Audio Features: Airplay, DLNA, HiByLink
Touchscreen:
- Size: 3″
- Resolution: 800*480
Storage/Exterior/Power:
- USB Port : USB 2.0 Supported (With OTG Support)
- Micro SD : Supports up to 2TB
- Color Choices : Black, White, Blue, Green, Orange
- Chassis Materials : Polycarbonate Chassis With Glass Back
- Dimensions : 83.551.112.35mm
- Weight : 70g
- Charging Power Supply : 5V/1000mA; 5V/500mA
- Battery Capacity : 1150mAh/3.8V
- Play Time : approx.15h
- Standby Time : 400h
- Charging Time : <2h (0%-100%)
Audio Specifications:
- Max Output Voltage : 1.8V
- Max Output Power : 101mW
- Nominal Output Voltage : 1.5V
- Nominal Output Power : 70mW
- Minimum Distortion : 0.001%
- Dynamic Range : 122dB
- Noise Floor : 1.3uV
- SNR : 122.3dB(A)
- Channel Separation : 75dB(A)
- Frequency Response : 80kHz

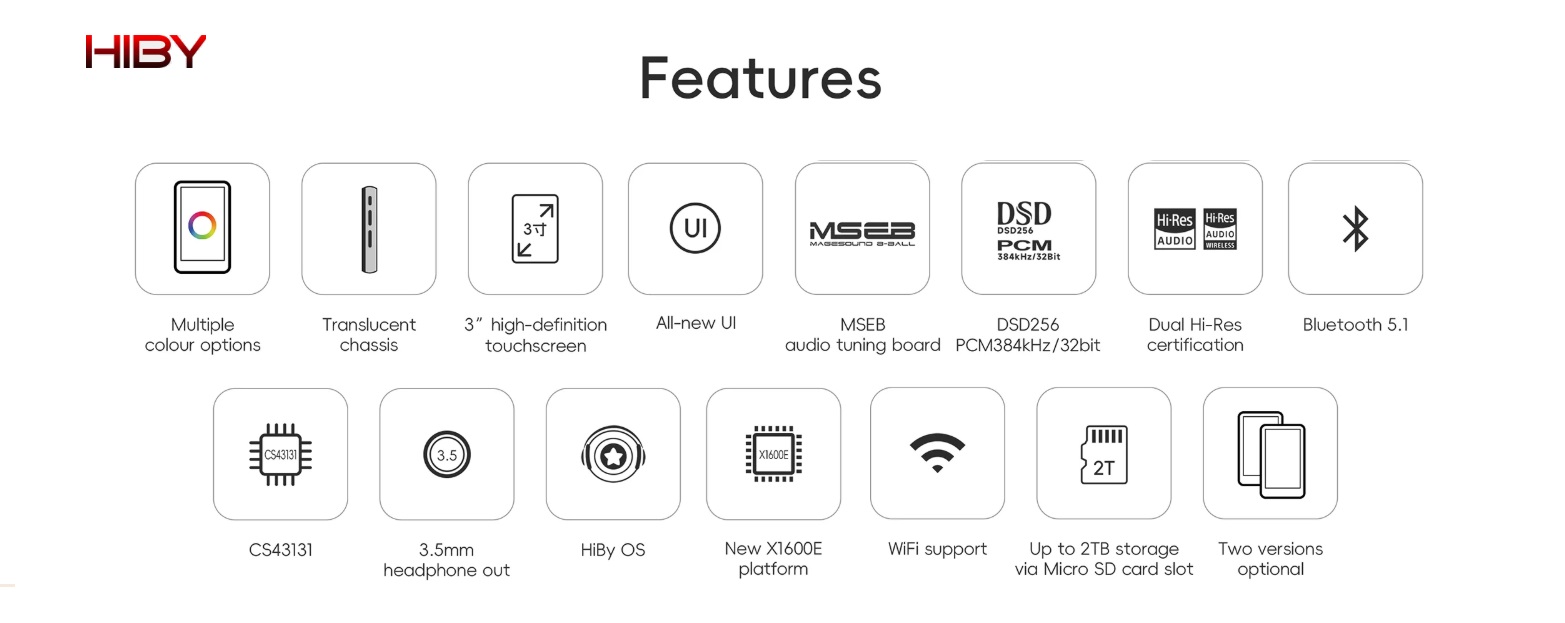

Hardware and Software Features:
The HiBy R1 features the HiFi CS43131 DAC, supporting high-resolution audio and amplification. It uses the X1600E master control for improved efficiency and responsiveness, running on the intuitive HiByOS. This operating system supports various audio formats and streaming services like TIDAL and Qobuz. Connectivity options include USB audio out (no USB DAC), wireless file transfers, OTA updates via WiFi, and Bluetooth 5.1 (transmit only) with high-resolution codecs like LDAC and aptX. The 1150mAh battery provides up to 15 hours of playback, with real-world use achieving 13 to 14 hours at moderate volume levels. Let’s explore these features and performance metrics in detail.
HiFi CS43131 DAC & Amplification:
The HiFi CS43131 DAC, part of Cirrus Logic’s MasterHiFi™ series, is an essential component in the HiBy R1’s audio architecture. This DAC supports native decoding of DSD256 and handles PCM up to 32-bit/384kHz. Additionally, it includes a high-resolution headphone amplifier, which helps to maintain audio clarity and precision. While the device is positioned as a budget option, the inclusion of the CS43131 DAC allows it to deliver a respectable level of sound quality, offering clear and detailed audio for everyday listening. The DAC’s efficiency also contributes to an extended battery life, making the HiBy R1 both a practical and capable choice within its price range.
Supported formats : mp3, wav, ape, flac, dsf, dff, iso, cue, wma, ogg, aac, opus, aiff
For a budget-oriented device, the HiBy R1 offers decent audio performance metrics. At its maximum volume, the R1 provides a peak output voltage of 1.8V and a maximum output power of 101mW. This ensures the device can adequately drive a variety of headphones, even those requiring a bit more power. Under nominal conditions with total harmonic distortion (THD) of less than 1%, the output voltage is 1.5V and the output power is 70mW, which helps maintain audio clarity. The device’s minimum distortion rate is 0.001%, showcasing its ability to deliver clean audio at adjusted volumes.
The dynamic range of the HiBy R1 reaches up to 122dB at maximum volume, allowing it to handle a broad range of audio details. Its noise floor is low at just 1.3uV, which contributes to a good signal-to-noise ratio (SNR) of 122.3dB(A), ensuring clear audio with minimal background noise. Additionally, the channel separation of 75dB at maximum volume provides a decent stereo experience.
The HiBy R1 comes with a default volume cap set at 54. However, users have the option to unlock this limit for a higher volume output. This involves accessing the “About” section and engaging with the HiBy logo until developer mode is activated. Once in developer mode, users can navigate back to the main settings, find the developer settings, and disable the volume lock. While this unlocks the potential for higher volume, it’s crucial to remember that excessive volume levels can harm hearing, so always listen responsibly and at safe levels.

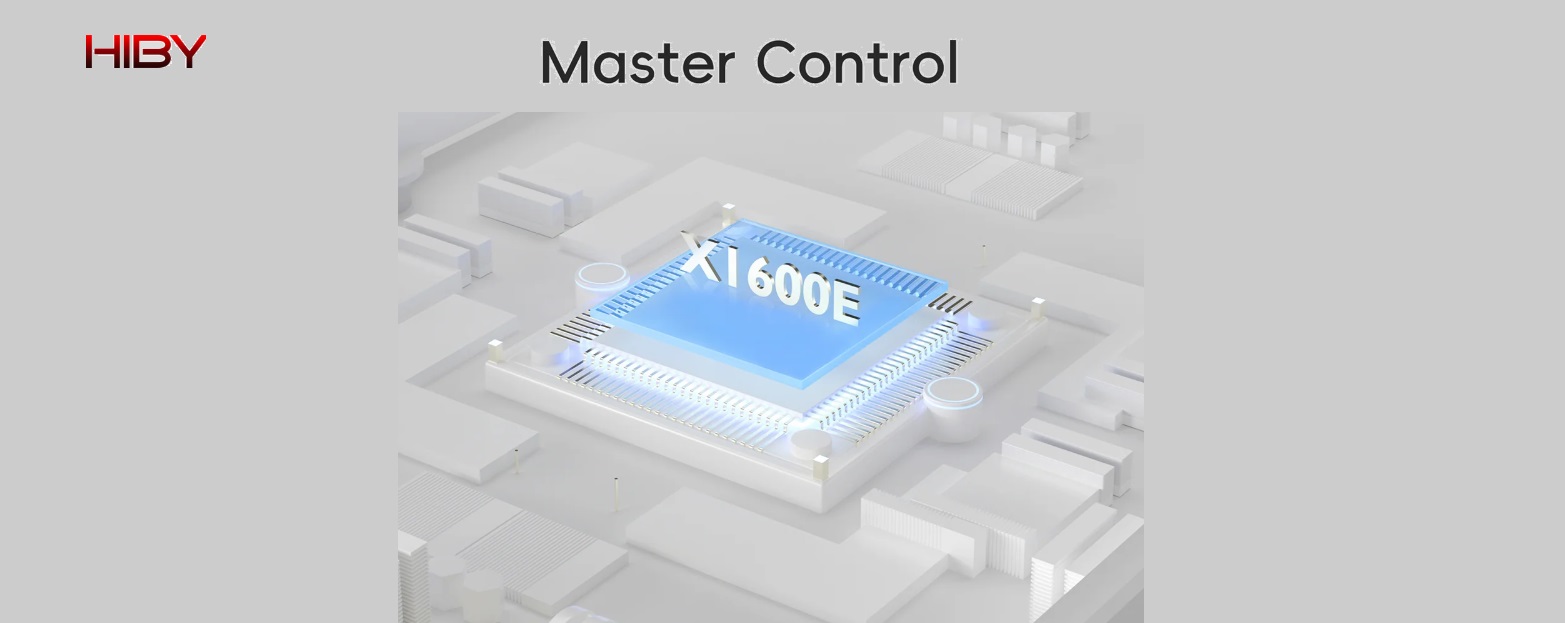

X1600E Master Control:
The heart of the HiBy R1’s performance lies in the X1600E master control. This advanced component significantly enhances the device’s efficiency and overall user experience. By improving energy management, the X1600E ensures that the HiBy R1 operates smoothly and swiftly, reducing lag and increasing responsiveness. This is particularly noticeable in tasks such as navigating the user interface and maintaining stable Bluetooth connections, both critical for a seamless audio experience. The superior energy efficiency of the X1600E also contributes to a longer battery life, allowing for extended playback without frequent recharging. Overall, the X1600E master control helps make the HiBy R1 not only powerful but also exceptionally reliable, meeting the high standards expected by audiophiles and everyday users alike.
HiByOS and the UI:
The HiByOS is a crucial element of the HiBy R1, offering an intuitive and user-friendly interface that enhances the overall user experience. The main screen is organized into a grid layout with six primary icons: Music, Stream Media, Wireless, Books, System, and About. This clear and straightforward design allows users to navigate through the device’s features with ease. The Music section provides access to the user’s music library, enabling efficient sorting by artist, album, genre, and more. The Stream Media function supports streaming services like TIDAL and Qobuz, offering a vast library of online music. The Wireless section manages Bluetooth and Wi-Fi connections, facilitating smooth wireless functionality. Additionally, the Books section supports e-books, while the System section includes various settings and configurations. The About section provides device information, such as software version and technical details.

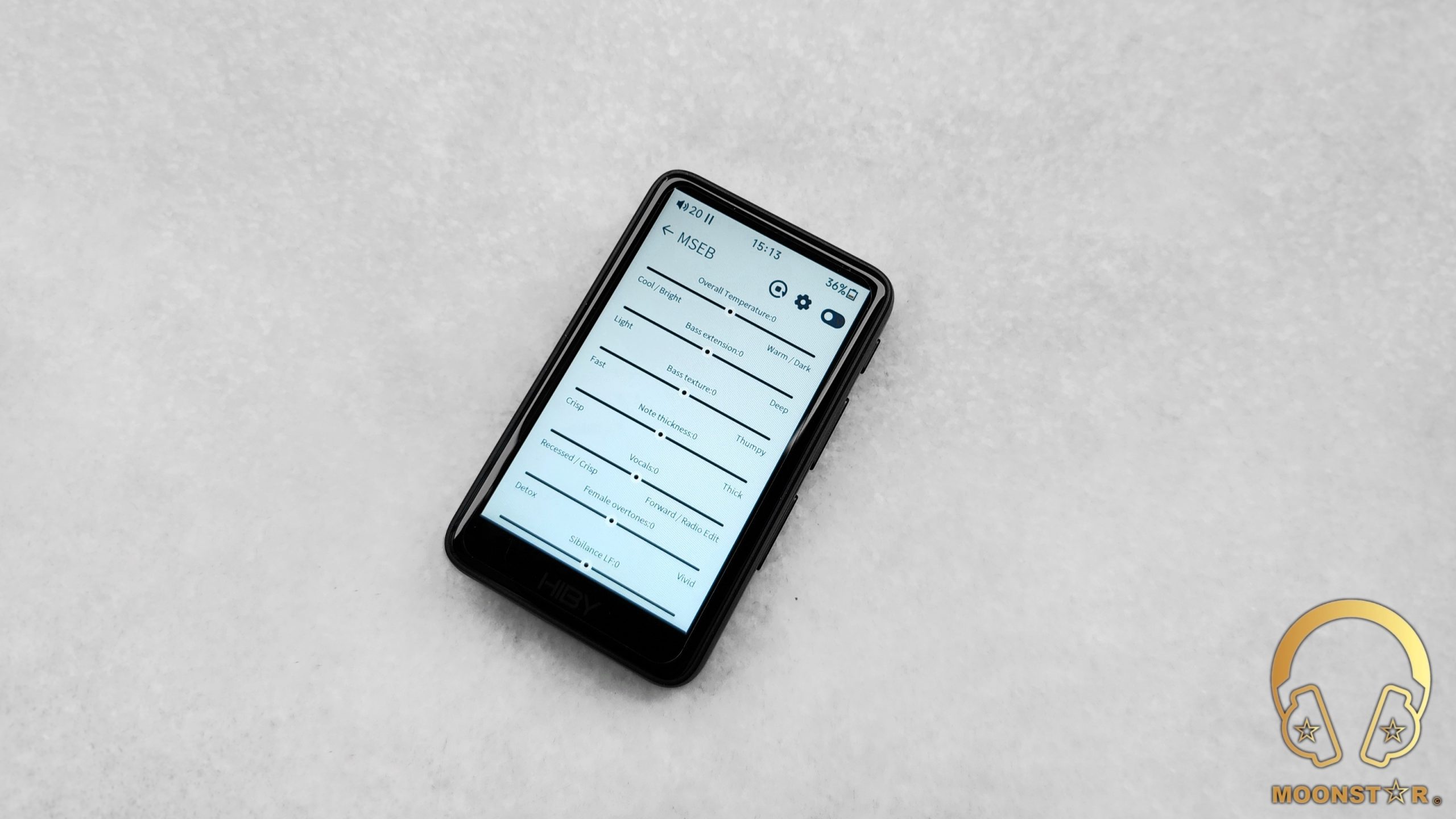

HiByOS is designed to handle all lossless audio formats efficiently and integrates new features continuously. The MSEB (Mage Sound 8-Ball) tool allows users to adjust tonal warmth, note thickness, vocal prominence, and response speed, personalizing the audio experience. Support for TIDAL and Qobuz ensures easy access to a wide range of music.
The music playback interface of the HiBy R1 is simple yet functional, displaying album covers, track information, and playback controls. Additionally, the HiBy R1 features a shortcut top bar, similar to Android OS, providing quick access to essential functions like Bluetooth and Wi-Fi settings. The fluidity and simplicity of the UI positively contribute to the device’s usability, making it straightforward and enjoyable for users to manage their music library on the go.
Connectivity & Audio Support:
The HiBy R1 digital music player offers a range of connectivity options that enhance its versatility and performance. It features USB OTG support through its USB-C port, allowing easy connectivity with external audio devices like dogless. Additionally, the HiBy R1 supports wireless file transfers and over-the-air (OTA) updates via WiFi, making it simple to keep the device updated and transfer music files without the need for physical connections.
Moreover, the HiBy R1 integrates streaming options for popular services like TIDAL and Qobuz, providing access to a vast library of high-resolution music. The inclusion of Bluetooth 5.1 further enhances the device’s capabilities, supporting high-resolution audio codecs such as LDAC and aptX. This allows for a reliable and high-quality listening experience, catering to the needs of audiophiles who demand excellent sound performance from their digital audio player. With these features, the HiBy R1 stands out as a versatile and capable device for modern music enthusiasts.
However, please note that the device cannot be used as a USB DAC or Bluetooth audio receiver to connect with other sources such as phones, tablets, or PCs.
Battery Capacity & Duration:
The HiBy R1 is equipped with a 1150mAh battery, providing commendable battery life for such a ultra compact portable music player. According to official specifications, the HiBy R1 can deliver up to 15 hours of continuous playback and over 400 hours of standby time.
In my experience, the HiBy R1 consistently delivers around 13 to 13.5 hours of continuous playback at a volume level of 50, with the screen off and WiFi disabled. The battery life of the HiBy R1 offers a practical and efficient solution for those looking for reliable performance in their portable audio devices.
Equipment’s used for this review:
DAP’s : HiBy R1
IEM’s : HiBy Project ACE, HiBy Yves, HiBy Beans
Albums & tracks used for this review:
- Sonya Yoncheva – (Giuseppe Verdi) II Trovatore, ActI (Flac 24bit/96kHz)
- Adele – My Little Love (Dezzer HiFi)
- Randy Crawford – On Day I Will Fly Away (Flac 16bit/44.1kHz)
- Hayley Westenra – Odyssey Album (Dezzer HiFi)
- Dionne Warwick – Walk On By (Flac 16bit/44.1kHz)
- Sarah McLachlan – Angel (Flac 24bit/48kHz)
- Sertap Erener – Aşk (Flac 16bit/44.1kHz)
- Edith Piaf – Non Je Ne Regrette Rien (Flac 16bit/44.1kHz)
- Diana Krall – So Wonderful (DSF)
- Aretha Franklin – I Say A Little Payer (Flac 24bit/96kHz)
- George Michael – Don’t Let the Sun Go Down on Me (Flac 24bit/192kHz)
- David Bowie – Heroes (Flac 24bit/192kHz)
- Elton John – Rocket Man ((Flac 24bit/96kHz)
- Barry White – Just The Way You Are (Flac 24bit/48kHz)
- Isaac Hayes – Walk On By (Flac 16bit/44.1kHz)
- Sting – Englishman in New York – (Flac 24bit/48kHz)
- Eric Clapton – Wonderful Tonight (Flac 24bit/96kHz)
- B. King – Riding With The King (Tidal Hi-Fi)
- Dave Gahan – Kingdom (Tidal Hi-Fi)
- U2 – Sunday Bloody Sunday (Flac 16bit/44.1kHz)
- Bro Safari, UFO! – Drama (Deezer HiFi)
- Armin Van Buuren – Vini Vici (Flac 16bit/44.1kHz)
- Daft Punk – Doin’ it Right (Flac 24bit/96kHz)
- Jo Blankenburg – Meraki (Spotify)
- Lorde – Royals (Flac 24bit/48kHz)
- Massive Attack – Angel (Flac 24bit/48kHz)
- Toutant – Rebirth (Deezer HiFi)
- Gogo Penguin – Raven (Flac 24bit/192kHz)
- Gogo Penguin – Murmuration (Flac 24bit/192kHz)
- Portishead – It Could Be Sweet (Spotify)
- Max Richter – On the Nature of Daylight (Flac 24bit/96kHz)
- Charly Antolini – Duwadjuwandadu (Flac 24bit/192kHz)
- The Dave Brubeck Quartet – Take Five (Flac 24bit/192kHz)
- Ferit Odman – Look, Stop & Listen (Flac 24bit/192kHz)
- Chopin – Nocturn No. 20 In C-Sharp Minor (Flac 16bit/44.1kHz)
- Fazıl Say – Nazım Oratoryosu (Live) (Flac 16bit/44.1kHz)
- Vivaldi – Le QuarttroStagioni “The Four Season” (Deezer HiFi)
- Otto Liebert & Luna Negra – The River (Flac 24bit/192kHz)
- Lunatic Soul – The Passage (Flac 16bit/44.1kHz)
- Deftones – My Own Summer (Shove it) (Flac 16bit/44.1kHz)
- Metallica – Sad but True (Flac 24bit/96kHz)
- Metallica – Master of Puppets (Flac 24bit/96kHz)
- Opeth – Windowpane (Flac 16bit/44.1kHz)
- Megadeth – Sweating Bullets (Tidal Hi-Fi)
- Rush’s – Leave That Thing Alone (Flac 16bit/44.1kHz)
- Slayer – Angel of Death (Spotify)
- Liquid Tension Experiment 2 – Acid Rain (Spotify)
- Yosi Horikawa – Bubbles (Spotify)
The Sound:
The HiBy R1 is a surprisingly good sounding entry-level digital audio player (DAP) that provides a mature and balanced sound signature. It shines in the midrange, offering clear and detailed vocals and instruments. The bass is tight and controlled, while the treble remains smooth and refined. The spacious soundstage and fairly precise imaging significantly enhance the overall listening experience. For those in search of a budget-friendly DAP that delivers impressive audio performance, the HiBy R1 is a highly recommended option, especially when paired with IEMs like the HiBy Project ACE.
Let’s explore its sonic performance across different frequencies.
The HiBy R1 review has been written after a burn-in period of approximately 90 hours. My sound impressions below are mainly based on the R1 paired with IEMs like the HiBy Project ACE, HiBy Beans and the HiBy Yves. No MSEB settings were activated.
HiBy R1: A Budget-Friendly DAP with a Surprisingly Mature Sound
Bass:
The HiBy R1’s bass performance is commendable for its price range, delivering a tight and controlled low-end response. The sub-bass frequencies are well-extended, providing a solid foundation for genres like electronic and hip-hop, while maintaining a clean and precise decay. Tracks like Daft Punk’s “Doin’ it Right” and Lorde’s “Royals” showcase the R1’s ability to handle deep sub-bass with clarity. The mid-bass is dynamic and lively, adding punch and energy to the music. This region is well-defined, allowing for clear distinction between different bass notes and instruments. Pairing the R1 with IEMs like the HiBy Project ACE enhances its bass capabilities, making the low-frequency response even more engaging. The meticulous bass layering ensures that different low-frequency elements are distinct, which is crucial for complex arrangements in genres like orchestral and progressive rock. While the R1’s bass may not match the depth and impact of higher-end DAPs, it remains impressive for an entry-level device.
Midrange:
The midrange of the HiBy R1 excels, particularly with its slight warmth that adds richness and fullness to the sound. This warmth is evident in the lower midrange, enriching male vocals and acoustic instruments such as guitars and cellos. Listening to tracks like David Bowie’s “Heroes” or Elton John’s “Rocket Man,” the R1 presents male vocals with a full-bodied presence that enhances their emotional impact. Pairing it with the HiBy Beans, which has a more neutral character and is included with the Set Version, enhances the midrange performance, bringing out subtle nuances and textures in the music, making the listening experience even more compelling. However, the HiBy Project ACE takes the R1 to another level, offering a richer and more musical presentation with a better sense of resolution, thus elevating the overall midrange experience. The upper midrange remains smooth and refined, avoiding harshness or sibilance. Female vocals and lead instruments like violins and pianos are rendered with clarity and detail, making them sound natural and expressive. This balance ensures that the R1 handles a wide range of musical styles with finesse.
Treble:
The treble on the HiBy R1 is extended and airy, contributing to an overall sense of openness in the sound. High-frequency instruments such as cymbals, flutes, and synths are rendered with clarity and precision, ensuring they cut through the mix without harshness. The treble extension ensures that these instruments maintain their brilliance and presence without becoming fatiguing. However, some listeners may find the treble slightly lacking in sparkle and airiness compared to more dynamic DAPs. Despite this, the R1 manages to handle complex musical passages smoothly, making it suitable for long listening sessions. The balance between detail and smoothness in the treble range enhances the overall listening experience. Pairing it with the HiBy Project ACE adds a touch of sparkle and brilliance to the treble performance, making it more enjoyable.
Soundstage & Imaging:
The HiBy R1 offers an impressive soundstage for its price range, creating a sense of width and depth that enhances the spatial quality of the audio. Instruments and vocals are well-separated, providing a clear and defined positioning within the mix. This spatial awareness makes the listening experience more immersive, although it may not match the expansiveness of higher-end models. Imaging is precise, allowing for accurate localization of sounds, which is beneficial in complex tracks with multiple elements. Overall, the R1 provides a satisfying and immersive soundstage and imaging experience, enhancing the enjoyment of a wide range of musical genres.
Conclusion:
The HiBy R1 is a commendable entry-level digital audio player (DAP) that offers a well-rounded audio performance. The HiFi CS43131 DAC and integrated amplifier deliver clear and detailed sound, while its efficient design supports extended battery life. The X1600E master control ensures smooth operation and energy efficiency, enhancing the overall user experience.
Its compact, lightweight design and clear touchscreen interface make the R1 both practical and stylish. The intuitive HiByOS simplifies navigation, and versatile connectivity options, including USB DAC support and Bluetooth 5.1 with high-resolution codecs like LDAC and aptX, add to its versatility. Delivering a balanced sound signature with tight bass, detailed midrange, smooth treble, and a spacious soundstage, the HiBy R1 stands out as a strong choice for those seeking a budget-friendly DAP with solid performance. Pairing it with IEMs like the HiBy Project ACE enhances the listening experience, making it a worthwhile option for audio enthusiasts.
Pros & Cons:
- + Good sound performance for an entry-level Digital Audio Player
- + User-Friendly Interface & Software Features (HiBy OS, MSEB, etc.)
- + Ultra Compact & Lightweight Design
- + Decent Battery Life
- + Great Value for you Money
- – No Bidirectional BT Connectivity (Bluetooth Receiver Option)
- – USB DAC function is missing
